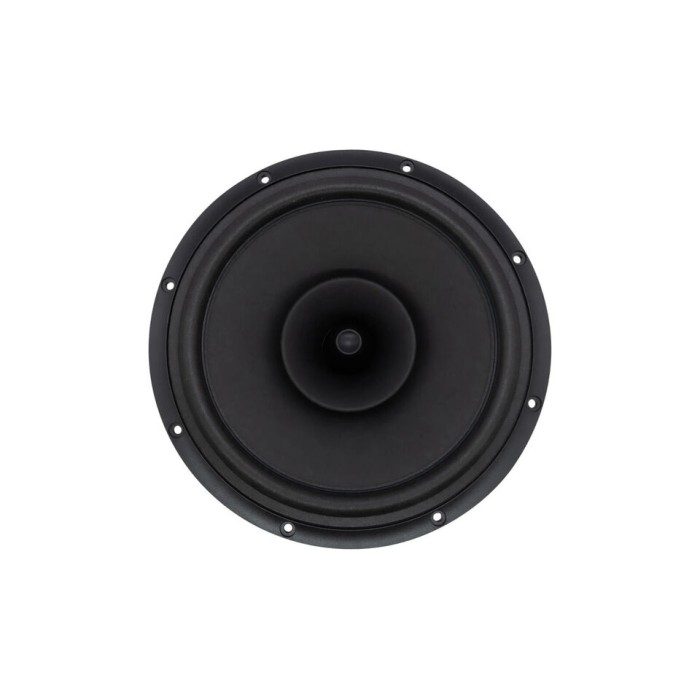

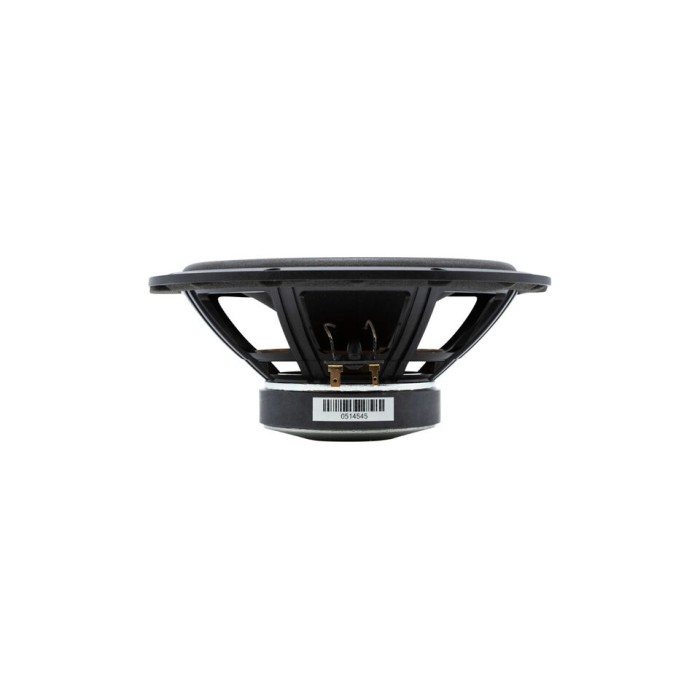

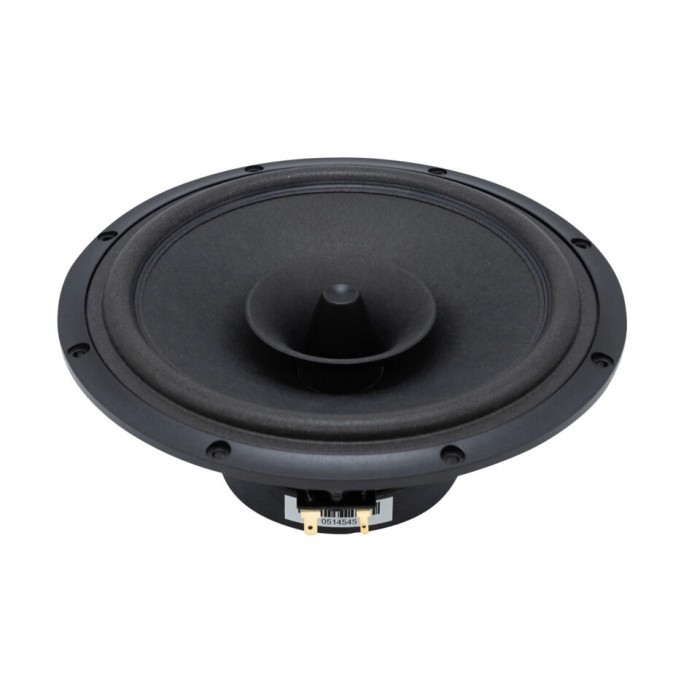

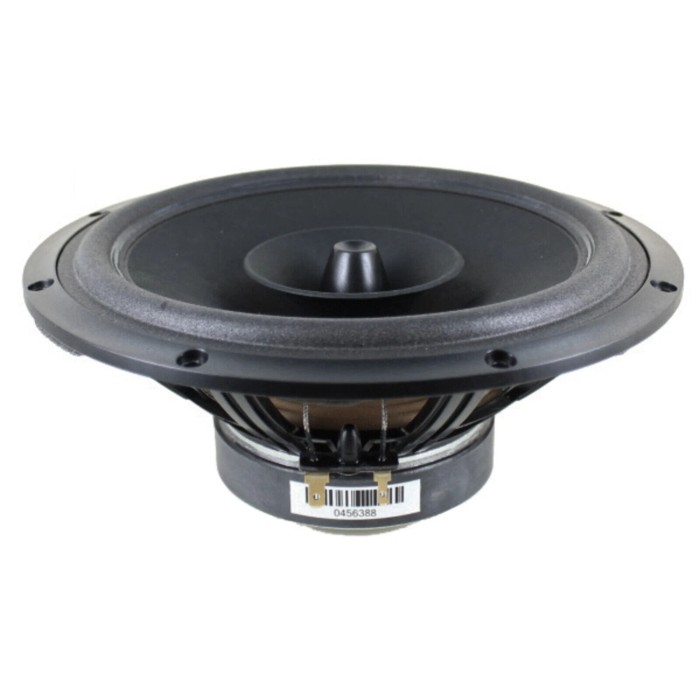

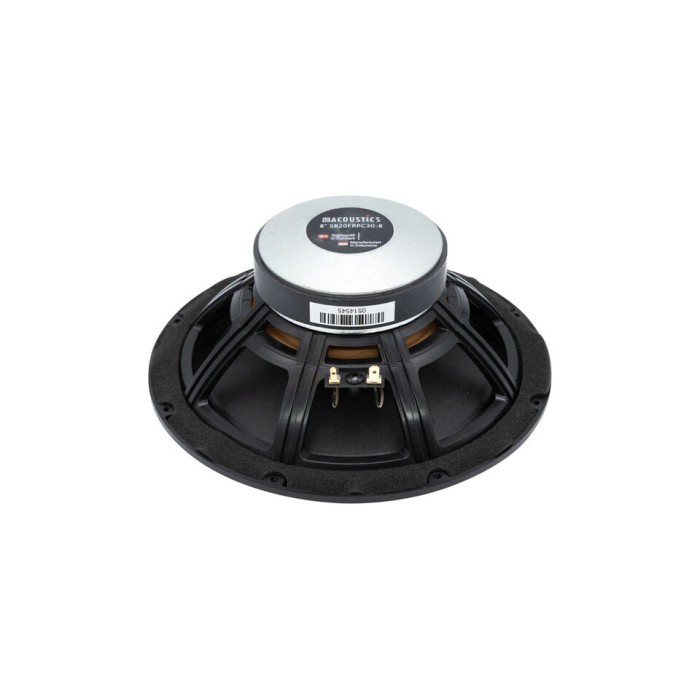

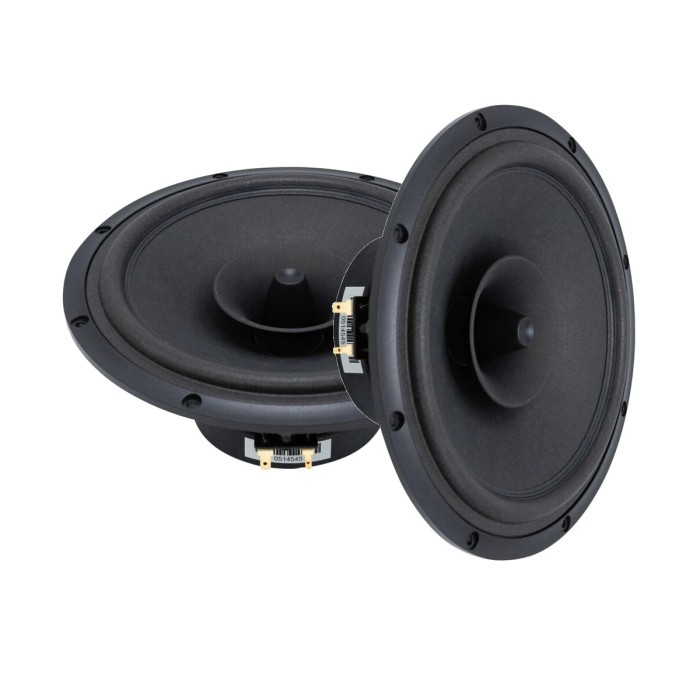

SB Acoustics SB20FRPC30-8 Full Range Speaker Per Pair

The SB20FRPC30-8 from SB Acoustics is an 8 inch 8 ohm full range loudspeaker drive unit that offers an exceptional frequency response with high sensitivity. This new drive unit is ideal for low powered class A amplifiers and offers a level of performance unheard of at this price point. A very well considered design with a pleasingly full bass response.

Just Google SB20FRPC30 and you should finds loads of positive reviews and projects. Ideal used on their owns as a stereo set of speakers or for use in the top end for open baffle speakers

Features:-

  • Proprietary cone material with natural fibers made in-house
  • Optimised 'whizzer' cone for smooth high frequency extension
  • Extended copper sleeve (Faraday ring) on pole piece
  • Central phase plug for controlled radiation
  • Large spider for improved linearity
  • Light weight foam surround
  • Vented reinforced plastic chassis
  • Non-conductive coil former
  • Long life lead wires


Specifications:-

Fs
39.4Hz
Qes
0.47
Qms
10.1
Qts
0.45
Re
6.0 Ohms
Mms
16.3g
Le
0.22mH
Vas
66.3.4L
Cms
1.0 mm/N
Sens
98dB
Sd
0.853L
Rms
0.4kg /s
Voice Coil Dia
30.5mm
Rated Power Handling
40W
Freq Resp.
32-3300Hz


Data Sheet HERE



Write a review

Please login or register to review

SB20FRPC30

  • Product Code: SB20FRPC30
  • Availability: In Stock
  • £98.00

  • Ex Tax: £81.67
